UL Steel Single Fire Door
XZIC fire door, each fire door is accompanied by UL fire certification and UL label, to ensure the integrity of fire protection.
UL Steel  Single Fire Door
    • Fire time: 1-3 hours
    • Maximum size: 2888mm*3104mm
    • Filling: mineral, aluminum silicate cotton, etc
  • Description

UL Steel Fire Door




UL Category Control Number are (R39532/R39533/R39534)

Filling Material

Perlite, honeycomb paper, aluminum silicate cotton ect.

Fire rated time

1 hour up to 3 hours.


Up to 9’- 5.7"*10’-2.2"ft(height) / 2888*3104mm(height) 0.14ft / 45mm

Door leaf sheet

22 Ga.-18 Ga.(/1.0/1.2 mm) galvanized steel sheet

Door frame sheet

16 Ga.-14 Ga.(1.5mm-2.0mm) galvanized steel sheet

Surface finish

Door leaf and frame powder coated finish.

Lite Frame

Frame thickness :0.38ft-1.64ft / 115mm-500mm frame type can be customized

Opening direction

Swing Inward/Outward


RAL color system, could be customized as well.


Can be configured according to customer requirements

Vision Panel

With or without according to customer requirements


With or without louvers according to customer requirements


Fire rated,insulation and sound insulation


Industry, commercial, hotel, hospital, chemical industry, etc


Inside:PE paper, Outside: double layers carton box and wooden pallets.


XZIC fire door could meet fire rated and insulation function,fire rated time meets regulation. Fire door can reduce the spread of fire and smoke, it plays an important role in preventive fire protection

To learn more?click to download
  • 1.Door frame type customization
    Support different frame structure to meet the needs of various application site doors.
  • 2.The hardware configurationoor
    A variety of hardware configuration, enhance the use of the door.
  • 3.Fire door cross section structure drawing
    Zoom in on details to learn more about your fire door structure

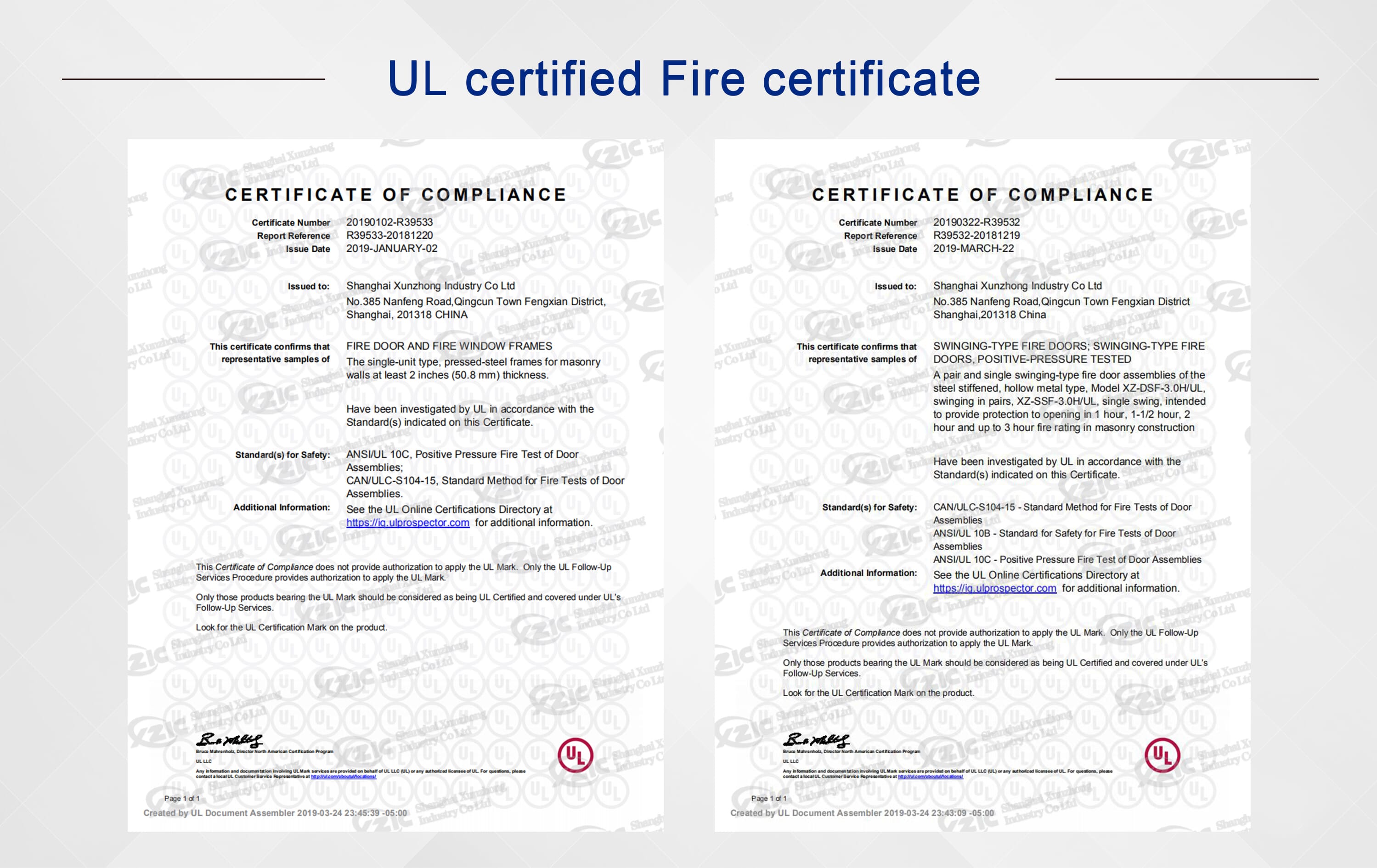

  • 4.Click here to view UL fire labels
    Each door is UL fire certified. Check the label for UL labels for multiple fire times.
  • Q: What is your main product?

    A: As China leading manufacturer of special doors,our product range includes fire door,hospital door,ward door,industry cleaning room door,sound proof door,explosion proof door,explosion relief door,etc.

  • Q: How can you guarantee your product quality?

    A: Not only for the product certificates worth your trust,but we adopt quality control by four testing procedures: Initial inspection, re-inspection, final inspection and sampling inspection to guarantee the quality.

  • Q: What is your payment terms?

    A: Normally, 30% - 50% of total amount by T/T as deposit and balance should be paid before delivery. Irrevocable L/C at sight is also acceptable.

  • Q: What is your delivery time?

    A: About 15 working days after deposit and drawing confirmed.
