20-90 Minutes Wood Fire Door Hotel Interior Doors Fireproof acoustic Door

XZIC is proud to present its latest addition to their line of interior doors: the 20-90 Minutes Wood Fire Door Hotel Interior Doors Fireproof acoustic Door. This premium-quality product is designed to provide maximum safety and sound insulation, making it perfect for use in hotels and other commercial establishments.

Made from high-quality materials, the Wood Fire Door is designed to protect your property in case of fire. It is rated to last for 20-90 minutes, ensuring that occupants have enough time to evacuate the building safely in the event of a fire. With this product, you can ensure the safety of your guests and prevent fire from spreading to other areas of the building.

The Wood Fire Door was also designed to provide excellent sound insulation, making it perfect for use in hotels and other noisy environments. It is installed with an acoustic seal that helps to reduce noise levels by up to 32 decibels. This means that occupants can enjoy peace and quiet, even in busy areas of the hotel.

In addition to its safety and sound insulation features, the Wood Fire Door is also aesthetically pleasing. It has a sleek and modern design that complements any interior décor. It is available in a range of finishes, including wood veneer, laminate, and paint, allowing you to choose the perfect look for your hotel.

At XZIC, we understand the importance of quality and durability. That is why we use only the best materials in the construction of our Wood Fire Door. The door is made of a robust wooden core and reinforced with steel, ensuring that it can withstand heavy use and remain in excellent condition for years to come

UL Wood Fire Door Specification
Brand	XZIC
Certifications	UL Category Control Number are (R39533/R39532) UL:ANSI/UL10C 10B CAN/ULC-S104
Filler Material	Mineral door core
Fire rated time	Door Frame : 20/30/45/60/90/120/180 minutes; Door Leaf:20/30/45/60/90 minutes
Size	Maximum size is(8ft * 8’0.79"ft)/ 2438x2459mm
Door leaf sheet	Solid wood or wood composite type
Door frame	Wood Frame:wood+polywood                                                                                                                      Steel Frame:sheet Thickness：16 Ga.-14 Ga.(1.5mm-2.0mm) galvanized steel sheet                      Frame Depth : 115 - 500mm based on wall thickness
Surface finish	Door Frame :Powder Coating or wooden grain PVC film or heat transfer  Door Leaf :Unfinished, primed, natural veneer with PU paint, engineer wood laminated, HPL etc
Opening direction	Swing Inward / Outward
Color	RAL color system, could be customized as well
Accessories	Lock, handle, hinges, door closer, panic bar and other as requested
Vision Panel	With or without as requested
Lite Frame	Frame type can be customized
Louver	With or without as requested
Feature	Fire proof and thermal insulation
Application	building project, business, home decoration, office, hotel, church, home etc
Package	Inside:PE paper, Outside: double layers carton box and wooden pallets
MOQ	1 Set

Certifications

Xunzhong fire doors started in 2003

These fire doors have excellent quality and reliable fire time

Steel door fire time: 90-180 minutes

Wood door fire time: 20-90minutes

In the event of fire can effectively play the role of fire prevention, reduce the loss of personnel and property

Our UL fire door certificate, you can check the corresponding fire certificate according to the number on the UL official website. In addition, our fire door has the UL fire label, the label information includes: manufacturer, fire protection time, fire protection certification scope, number and scannable QR code

Standards & Certifications:

Fire Standard Certification : UL 10(c) / UL 10(b)/ CAN/ULC S104

UL List Frame Certificate Number：R39533

UL List Leaf Certificate Number： R39532

Quality Control System: ISO9001-2015

Soundproof Standard : ASTM E90-09 - 2016

UL Fire Protection Label

Each door can be equipped with our UL fire label, on which you can scan the QR code to see more details about our UL fire door
Information on the label includes the name of the label, fire test passed, fire prevention time, label number, and manufacturer

Products Description

XZIC Hotel Apartment Fire Resistance Wooden Door Customize Process

XZIC fire rated wooden door passed 20 minutes, 45 minutes, 60 minutes and 90 minutes

Grade A positive pressure test, meet UL10B, UL10C standard

Door Type : Flush Fire Rated Door

Option 1 : Hollow Metal Frame Wooden Leaf Door

16 GA Knock Down Coat Painting Steel Frame

1 3/4’’ Door Leaf Thickness

Option 2 :Wooden Frame Wooden Leaf fire-proof Door

Wood Frame solid wood+polywood 100-500mm

1 3/4’’ Door Leaf Thickness

XZIC Certified Hardware Range :

Cylinder Lock, Self- Closing Closer, Ball Bearing Hinge, Spring Hinge, Viewer, Bottom Seal, Door Guard, Kick Plate etc

What Is on the Inside of Commercial Wooden Doors

   Wooden doors are a great option for many facilities in order to ensure safety and security
   However, you may be asking yourself: what types of wooden doors exist and how do I choose? We are happy to assist you in fitting your application needs
   In general, our main filling materials are: honeycomb paper, rock wool, perlite, polyurethane and other materials

FIRE DOOR

STRUCTURE

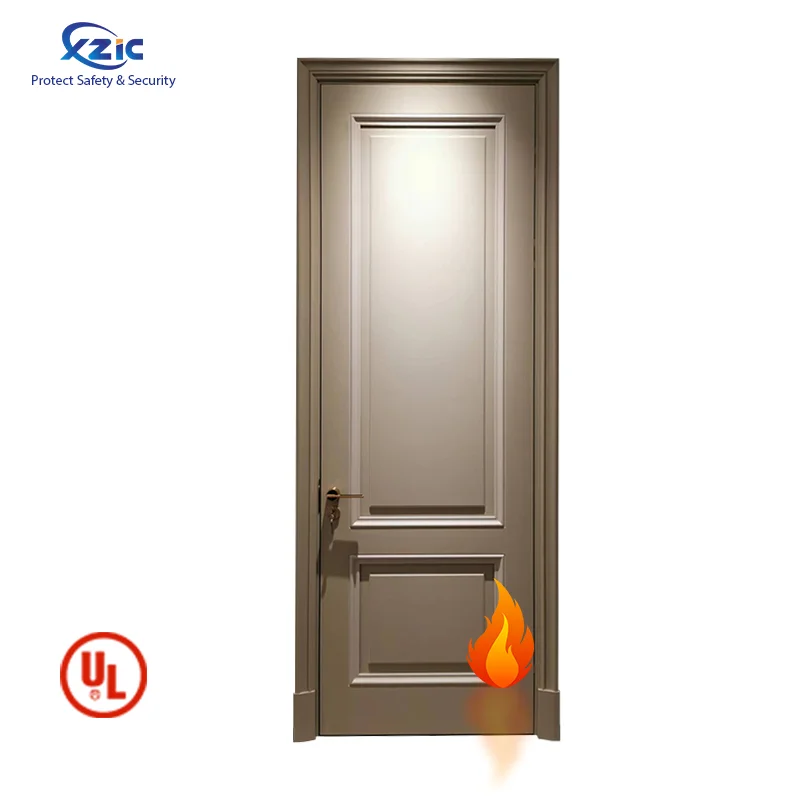

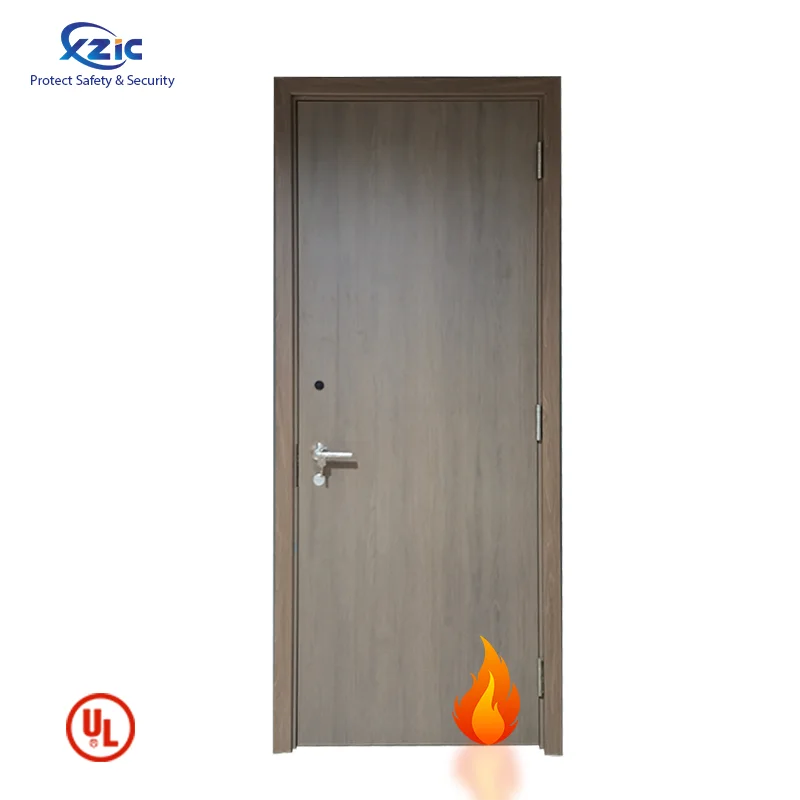

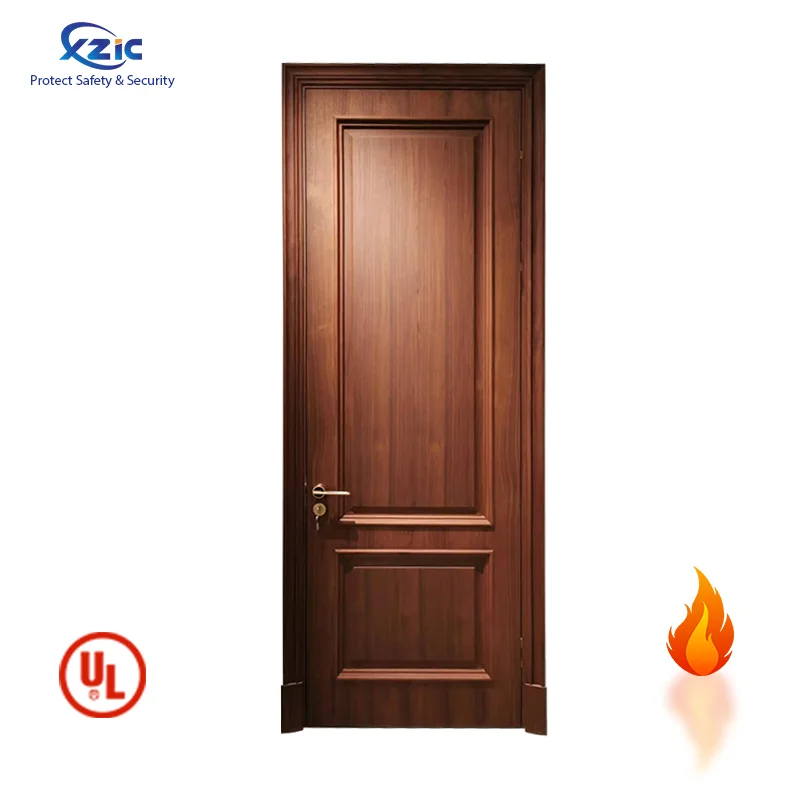

XZIC Wood Fire Door

Fire rate:

20 minutes

45 minutes

60 minutes

90 minutes

The direction of opening the door can be based on customer need

STAIN COLOR OPTIONS

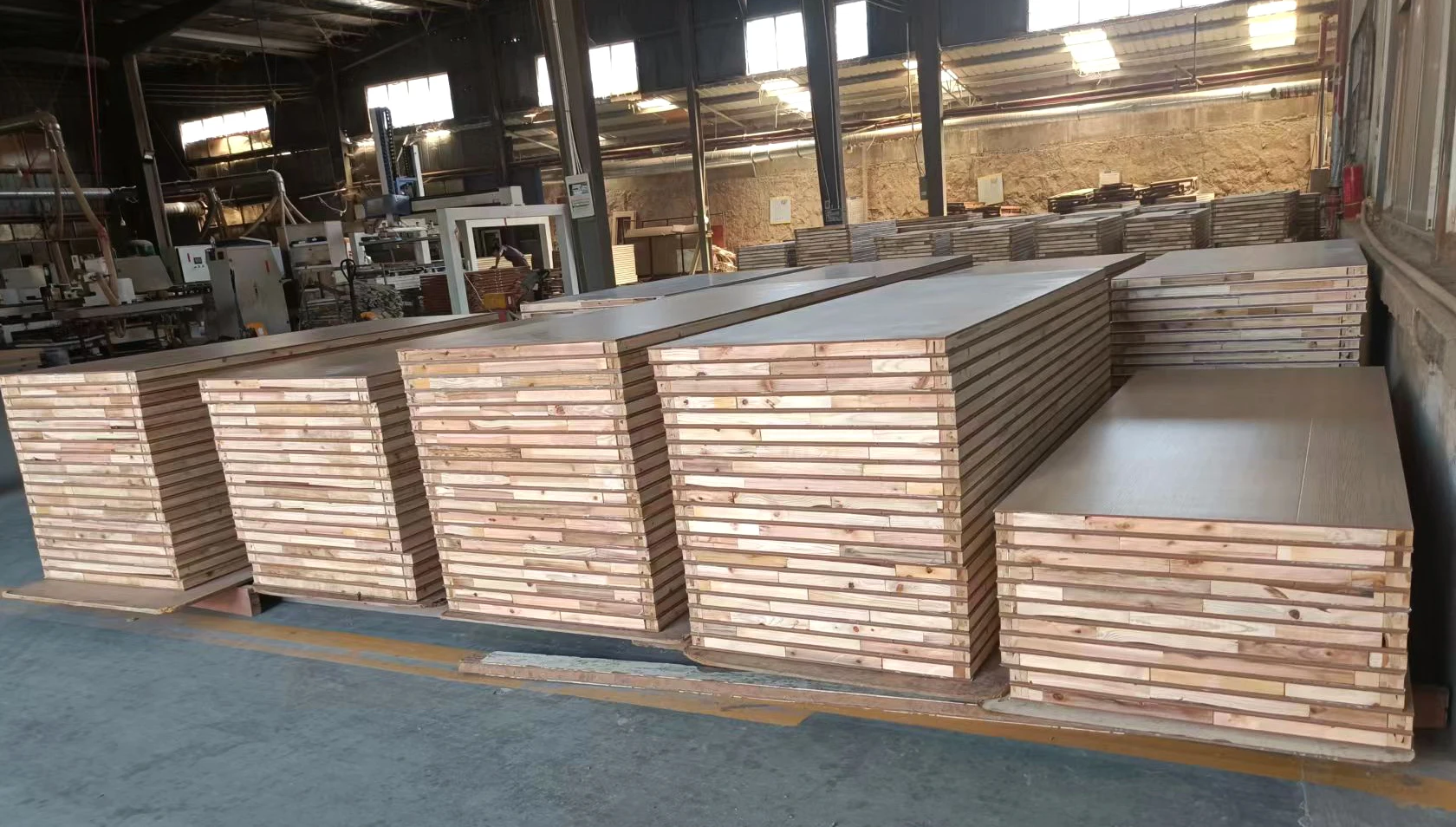

Factory Show

Transportation

Exhibition

Recommend Products

FAQ

Q: What is your main product
A: As China leading manufacturer of special doors, our product range includes fire door, hospital door, ward door, industry cleaning room door, sound proof door, explosion proof door, explosion relief door, etc

Q: What kind of Certification do you have
A: After professional testing by relevant institution, we have got certificates of UL, CE, NFPA, BS, ISO9001, etc

Q: How can I know your price
A: Tell us your requirement of the specification and the quantity, then we will send quotation to you

Q: How can you guarantee your product quality
A: Not only for the product certificates worth your trust, but we adopt quality control by four testing procedures: Initial inspection, re-inspection, final inspection and sampling inspection to guarantee the quality

Q: What is your payment terms
A: Normally, 30% - 50% of total amount by T/T as deposit and balance should be paid before delivery. Irrevocable L/C at sight is also acceptable

Q: What is your delivery time
A: About 15 working days after deposit and drawing confirmed
