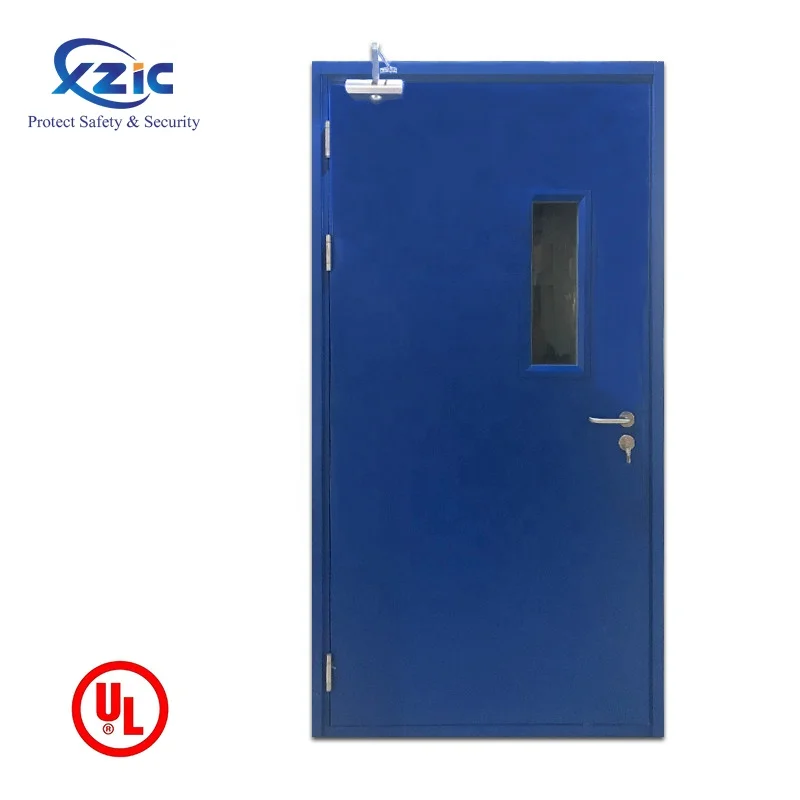

Introducing, the UL 180mins Hollow Metal Steel Fire Rated Exit Door and Frame delivered by XZIC - a trusted brand in building materials and safety products.
It is an essential addition to make sure that all aspects of your building stick to safety requirements with regards to fire protection. This comes with the exit doors and structures. The UL 180mins hollow metal steel fire rated exit door and frame are made to offer the ultimate protection against fire.
Created from top-notch steel, this door and frame are manufactured to resist fire for about 3 hours - delivering occupants the necessary time to evacuate the building. The hollow metal provides energy and additional durability which makes it well suited for high traffic areas like schools, hospitals, and commercial structures.
The UL 180mins Hollow Metal Steel Fire Rated Exit Door and Frame furthermore provides excellent security along with its fire-resistant properties. The heavy-duty construction of it is practically impenetrable, providing satisfaction knowing that your building is safe.
Installation of the UL 180mins Hollow Metal Steel Fire Rated Exit Door and Frame is unquestionably very easy. It was developed to suit seamlessly into any standard house, making this simple to fit into your structures or incorporate into new construction jobs.
XZIC's dedication to quality is obvious in most of the system. The frame and door are rigorously tested to meet the most important protection demands.
Buying the UL 180mins Hollow Metal Steel Fire Rated Exit Door and Frame is securing the protection of the occupants and the security of your building. Trust XZIC to make dependable and top-quality items for your building demands
UL Fire Door Specification |
Brand |
XZIC |
Certifications |
UL Category Control Number are R39532/R39533/R39534 |
Filler Material |
Perlite, honeycomb paper, aluminum silicate cotton etc |
|
1 hour up to 3 hours |
Size |
Up to 9’- 5.7"*10’-2.2"ft(height) / 2888*3104mmheight |
Door leaf sheet |
22 Ga.-18 Ga.(/1.0/1.2 mm) galvanized steel sheet |
Door frame sheet |
16 Ga.-14 Ga.(1.5mm-2.0mm) galvanized steel sheet |
Surface finish |
Door leaf and frame powder coated finish |
Opening direction |
Swing Inward / Outward |
Color |
RAL color system, could be customized as well |
Accessories |
Lock, handle, hinges, door closer, panic bar and other as requested |
Vision Panel |
With or without as requested |
Lite Frame |
Frame type can be customized |
Louver |
With or without as requested |
Feature |
Fire proof and thermal insulation |
Application |
building project, business, home decoration, Office, hotel, church, home etc |
Package |
Inside:PE paper, Outside: double layers carton box and wooden pallets |
MOQ |
1 Set |
Xunzhong fire doors started in 2003
These fire doors have excellent quality and reliable fire time, steel door fire time: 90-180 minutes, wood door fire
time:20-90minutes
In the event of fire can effectively play the role of fire prevention, reduce the loss of personnel and property
Our UL fire door certificate, you can check the corresponding fire certificate according to the number on the UL official website
Standards & Certifications:
UL 10(c) 、UL 10(b)、 CAN/ULC S104
UL lite frame certificate Number :20190102-R39533
UL lite frame certificate Number :20190322-R39532
Our UL fire door certificate, you can check the corresponding fire certificate according to the number on the UL official website
In addition, our fire door has the UL fire label, the label information includes: manufacturer, fire protection time, fire protection certification scope, number and scannable QR code
Steel fire Door - door leaf 2 hours label
Steel fire Door - door leaf 3 hours label
Steel fire Door - door frame 2 hours label
Steel fire Door - door frame 3 hours label
Certified with ANSI/UL10C UL10B
CAN/ULC-S104/EN/BS
1 hour up to 3 hours fire rating
Max Size：9’- 5.7"*10’-2.2"ft(height) / 2888*3104mm height
What Is on the Inside of Commercial Steel Doors
Steel fire doors are a great option for many facilities in order to ensure safety and security
However, you may be asking yourself: what types of wooden doors exist and how do I choose? We are happy to assist you in fitting your application needs
In general, our main filling materials are: honeycomb paper, rock wool, perlite, polyurethane and other materials
About our hardware fittings
The use of high quality material, will not cut corners, in different functions of the use of the door will have different styles and use of hardware, support customer customization or match
Refer to the picture on the right, the door body can be added: louvers, fire Windows, line modeling, etc
Note: Some special designs do not meet UL specifications, please consult us for details
Figure shows: TOP view, hinge opening, lock opening, in addition, XZIC American standard fire door can be customized for you according to your hardware requirements CAD drawing, so that you can better understand your fire door, to help production cooperation
Optional door frame type: hollow metal frame or wood frame Door lock type: Narrow line Aluminum、Cylindrical、Mortise、Mortise Exit Device，etc. For more hardware types please contact us
Select your door opening direction
In this part, you can learn more about the opening direction of the door and choose the way of opening inside or outside. If you have any questions, please consult our customer service. We are happy to serve you
About our factory and service logistics
We support a variety of logistics distribution methods, before packaging will have a rigorous review to ensure that the quality of the goods delivered to you is correct
Company Introduction
Shanghai Xunzhong Industry Co., Ltd is a leading professional manufacturer of fire door&window and other special doors, located in the international metropolis -Shanghai, established in 2003. For promotion of business development, we set up a HongKong company called Branch:Lixin
Our Enterprise has more than 15 years experience with two production bases located in Shanghai and Jiangsu province, annual production capacity could reach 1 million sets of door Main products cover UL&CE fire door&fire window, explosion proof door, sound proof door, hospital door, clean room door and other special door
Benefit from advanced technique and efficient international marketing exploration. Xunzhong has gained good reputation as reliable partner in over 50 countries and regions such as North America, Europe, Australia, South America, Middle East, South Asia, Southeast Aisa, etc
Xunzhong Products constantly strive to provide professional doors solution by providing premium products at competitive prices.
Complete range of production line can meet different requirement from various customers. We sincerely hope to establish lasting business relationships with customers worldwide
Exhibitions
Among foreign exhibition, Xunzhong fire door has been deeply consumer's affection and trust, at the conference by customers in the local countries, due to recent outbreaks, cannot attend overseas exhibitions, but we firmly believe that there will be at the fair and clients meet again opportunity again, welcome to visit our company to negotiate
XZIC wood fire door
Certification: UL fire protection standard, BS, CE, ISO9001, SGS, etc
Maximum custom size: 8ft * 8 '0.79"ft / 2438x2459mm
Fire protection time: 20-90 minutes
What is a fire door
A complete installed door assembly comprising door frame, door leaves, hardware, seals and any glazing that, when closed, is intended to resist the passage of fire and smoke in accordance with specified performance criteria
A Fire Door = A complete installed assembly
Purpose of Fire Door
Primary Reason - To save lives & property in the event of a fire
An average of 62 deaths per day in the last 5 years
Designed to keep closed in the event of fire so that the fire should not spread to other areas
Two important functions
1) Compartmentalizing a fire
2) Creating & Protecting an escape route through the building
Fire Risk Assessment = To identify fire resistance of fire door
What is fire rating in fire door
Resistance to Smoke/Fire for a minimum specified length of time
Fire Ratings are stated in minutes & prefixed by the letters‘FD'
FD30 = 30 minute Fire Door set
One that offers at least 30 minutes of protection against fires
FD30 - 30 minutes
FD60 - 60 minutes
FD90 - 90 minutes
FD120 - 120 minutes
XZIC UL Steel fire doors up to 3 hours rating
Where a fire door can be used
Wherever a fire might start, it is advisable to use a fire door there. Doors leading from a kitchen, a lounge with a fireplace & TV or any room with electric equipment or flammable items
About XZIC fire door
XZIC DOORS provides a full line of standard and customized hollow metal doors for construction projects in the commercial, industrial and institutional markets. XZIC doors has been used for hotel, school, apartment, hospital, power plant, e-house, subway station etc
Standard metal fire doors are 1-3/4" thick. The doors finish with powder coating, which could be choose from RAL color. Hollow Metal Doors are shown to have superior performance for strength and durability compared to the alternate materials. Metal doors are more sanitary, much easier to maintain. A result of the strength and durability of steel is that metal doors have the lowest total cost of ownership of any other materials. XZIC hollow metal steel fire doors that meet the strict guidelines of Steel Door Institute (SDI), and our doors are tested from UL laboratory, which is pretty hard to success approved by UL company. But we did. XZIC steel fire doors, frames, glass vision, glass vision frame, handle lock, hinges, closer are both get tested by UL company
TFAQ
Q: What is your main productA: As China leading manufacturer of special doors, our product range includes fire door, hospital door, ward door, industry cleaning room door, sound proof door, explosion proof door, explosion relief door, etc
Q: What kind of Certification do you haveA: After professional testing by relevant institution, we have got certificates of UL, CE, NFPA, BS, ISO9001, etc
Q: How can I know your priceA: Tell us your requirement of the specification and the quantity, then we will send quotation to you
Q: How can you guarantee your product qualityA: Not only for the product certificates worth your trust, but we adopt quality control by four testing procedures: Initial inspection, re-inspection, final inspection and sampling inspection to guarantee the quality
Q: What is your payment termsA: Normally, 30% - 50% of total amount by T/T as deposit and balance should be paid before delivery. Irrevocable L/C at sight is also acceptable
Q: What is your delivery timeA: About 15 working days after deposit and drawing confirmed
