UL fire door hardware

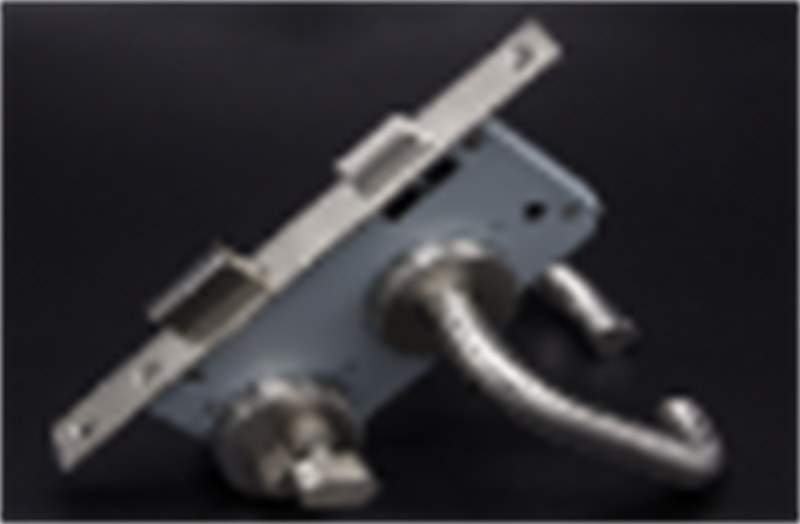

1. Locksets & Exit Devices

Standards & Grades:

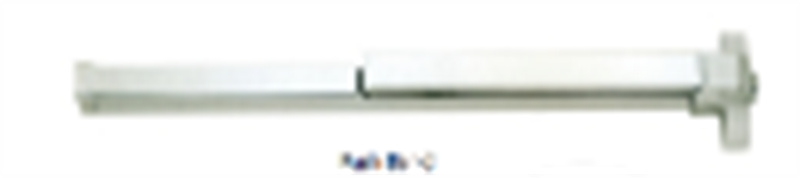

ANSI/BHMA A156.2 (Grade 1) – Exit devices

ANSI/BHMA A156.5 (Grade 1) – Cylindrical locks

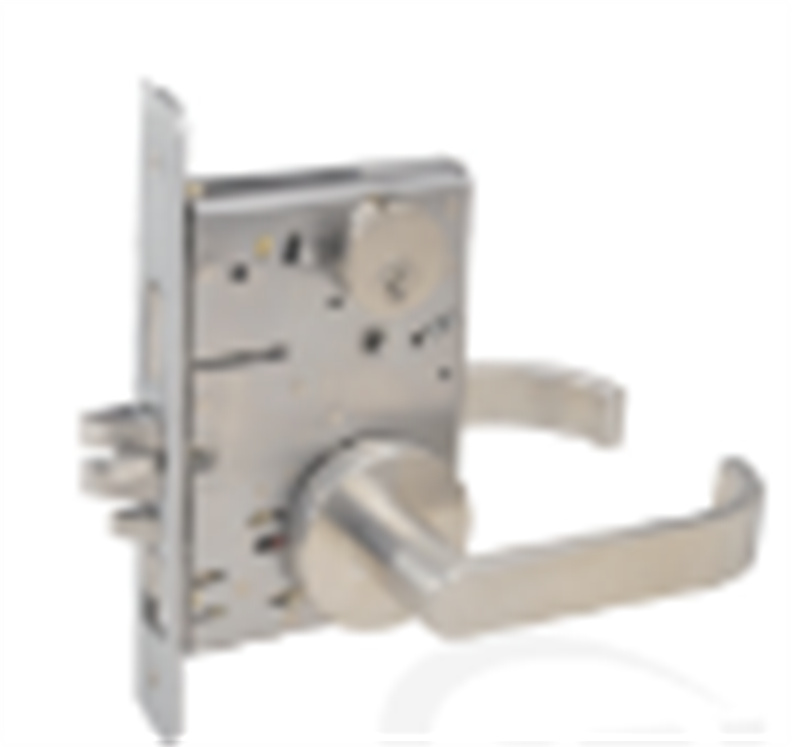

ANSI/BHMA A156.13 (Grade 1) – Mortise locks

UL 10C – Fire-rated locks (if required)

CAN/ULC-S132 – Fire doors (Canada)

Requirements：

Type: Mortise, cylindrical, or panic exit device (rim or mortise)

Function：Classroom function (interior)

Storeroom/entry function (exterior)

Finish: US32 (Dark Bronze), US26D (Satin Stainless) per ANSI/BHMA A156.18

Security:Anti-drill, anti-pick cylinders (ANSI Grade 1)

Heavy-duty strike plates with 3+ screws

Fire Rating: UL10C listed for fire doors (if applicable)

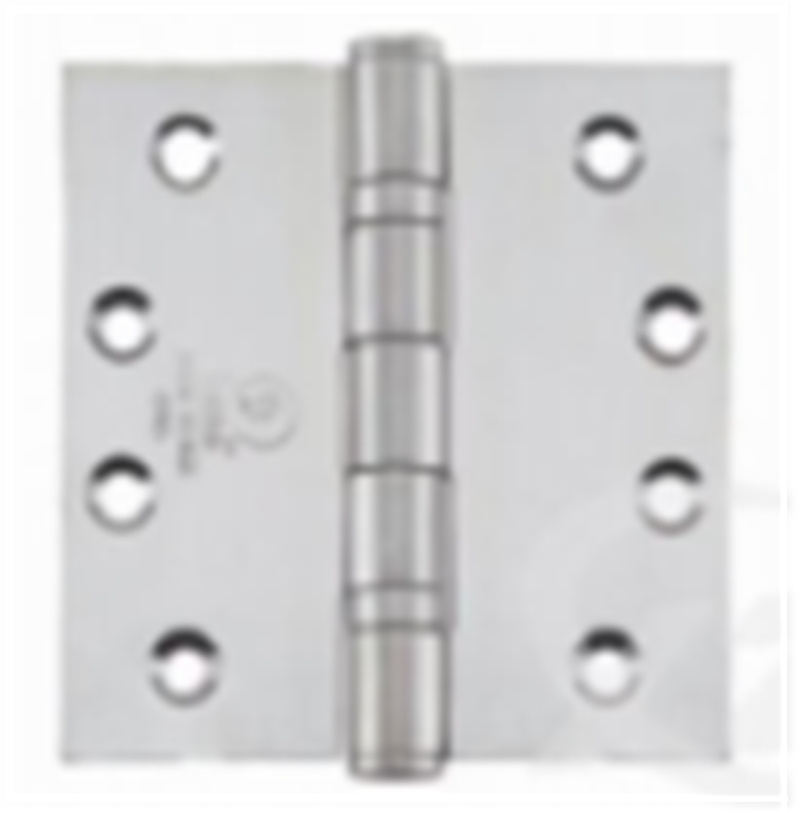

2. Hinges

Standards & Grades:

ANSI/BHMA A156.1 (Grade 1) – Heavy-duty hinges

UL 10B/UL 10C – Fire-rated hinges

CAN/ULC-S132 – Canadian fire door complianc

Requirements:

Material: Stainless steel (304 grade) or steel with corrosion-resistant coating

Type: Ball-bearing, full-mortise

Size & Quantity:4.5" x 4.5" (minimum for commercial doors)

3 hinges (doors ≤ 90" height)

4 hinges (doors > 90" or high-traffic areas)

Load Rating: Minimum 600 lbs per hinge pairFire Rating: UL-listed for fire doors (if required)

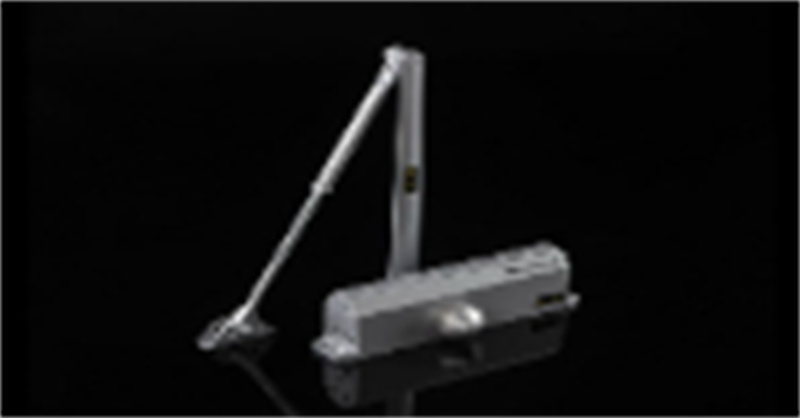

3. Door Closer

Standards & Grades:

ANSI/BHMA A156.4 (Grade 1) – Heavy-duty closers

UL 10C – Fire-rated closers

CAN/ULC-S132 – Canadian compliance

Requirements:

Type: Surface-mounted (parallel arm) or concealed

Adjustability：Backcheck (prevents slamming)

Sweep & latch speed control

Duty Rating:Standard Duty (3M cycles) – Light commercial

Heavy Duty (5M+ cycles) – High-traffic areas

Fire Rating: UL10C compliant for fire doors

4. Weatherstripping & Seals

Standards:

ASTM E283 – Air infiltration

ASTM E330 – Structural performance

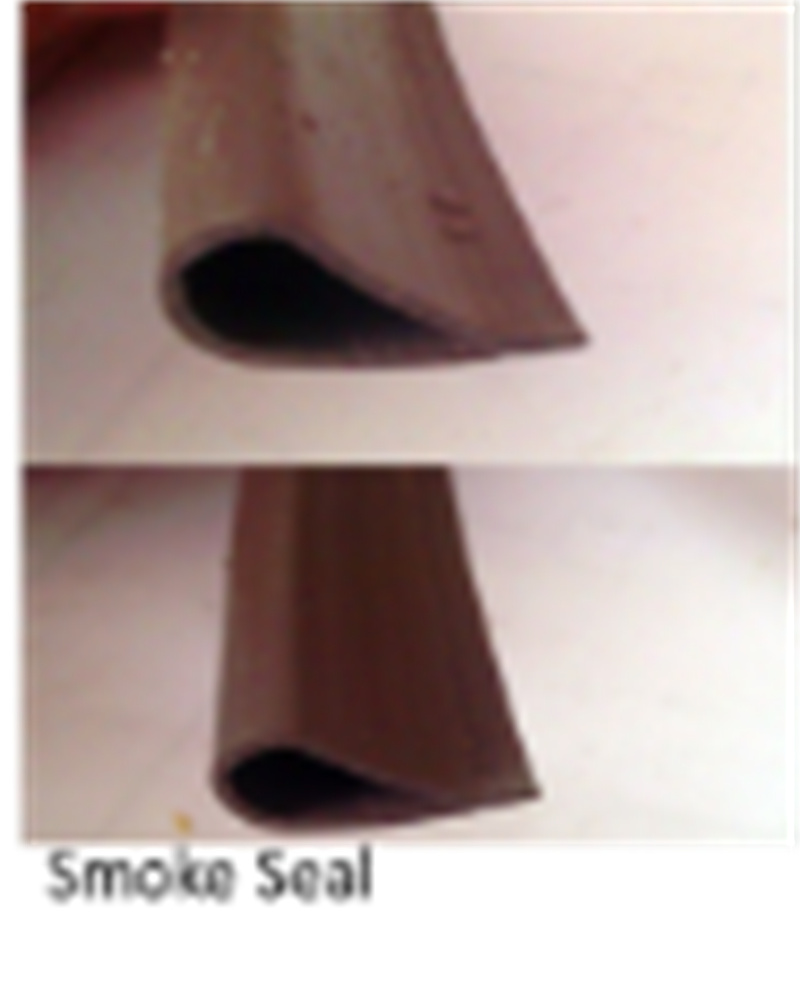

UL 1784 – Smoke & fire seals

Requirements:

Type：Perimeter seals: Kerf-in or surface-mounted EPDM/silicone

Threshold seals: Aluminum with neoprene insert (ADA-compliant, max ½" rise)

Fire Rating: Intumescent strips (expand under heat) for fire doors

Durability: UV-resistant, -40°F to +200°F range

5. Vision pannel (Windows)

Standards:

ANSI Z97.1 / CPSC 16 CFR 1201 – Safety glazing

NFPA 80 – Fire-rated glazing

CAN/ULC-S112 – Impact resistance (Canada)

Requirements:

Glass Type：

Tempered glass (1/4" min. thickness)

Laminated glass (for security/soundproofing)

Fire-rated glass (if required, 20/45/60/90 min.)

Frame Material: Stainless steel or thermally broken aluminum

Security Options:

Wire-reinforced glass (UL752 Level 1)

Polycarbonate glazing (impact-resistant)

Additional Compliance Notes:

✅ ADA Compliance (ANSI A117.1):

Lever-style hardware (operable with closed fist)

Threshold max ½" rise

✅ Fire Ratings (UL10C / CAN/ULC-S132):

Required for fire-rated door assemblies

✅ Sustainability (LEED):

Low-VOC gaskets

Recycled metal content

Procurement Checklist:

✔ BHMA-certified hardware (Grade 1)
✔ UL-listed components (if fire-rated)
✔ CAN/ULC-S132 compliance (for Canadian projects)

This specification ensures compliance with U.S. (ANSI, UL, ASTM) and Canadian (CSA, CAN/ULC) standards for commercial steel doors. Let me know if you need modifications for specific project requirements
