UL fire door Regulatory and Certification Requirements

UL 10B&10C: Dynamic Fire Resistance Test (High-temperature Airflow Impact + Door Integrity Test).

NFPA 80: Specifies the installation, maintenance and gap control (≤ 3mm) of fire doors.

IBC (International Building Code): High-rise buildings must use 90-minute/3-hour fire-resistant doors.

LEED Certification: Environmental Requirements Promote the Use of Low-VOC Coatings and Recyclable Materials

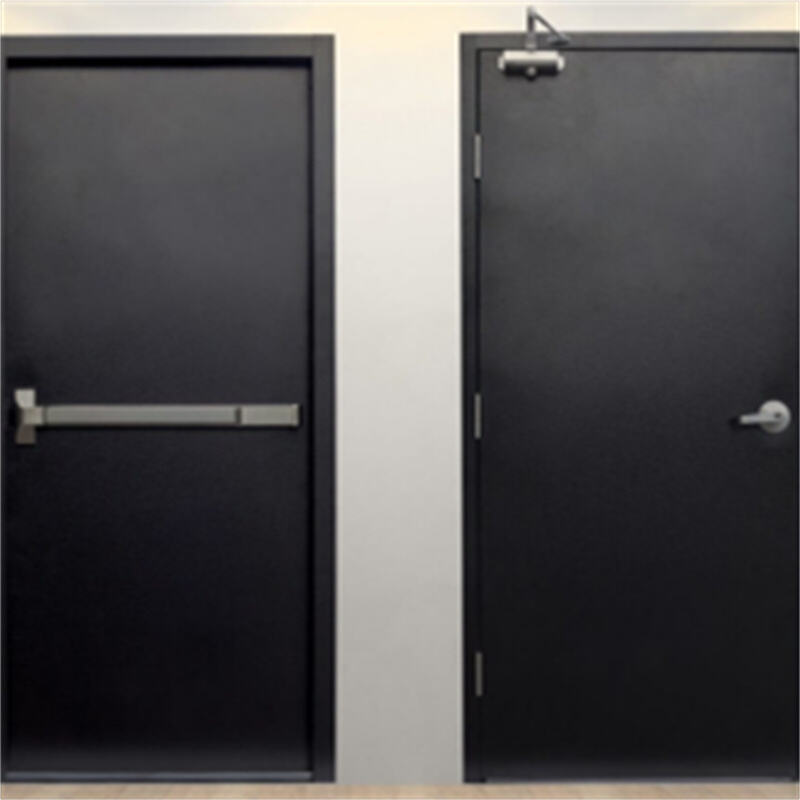

the Core Manufacturing Techniques for American Standard Fireproof Doors

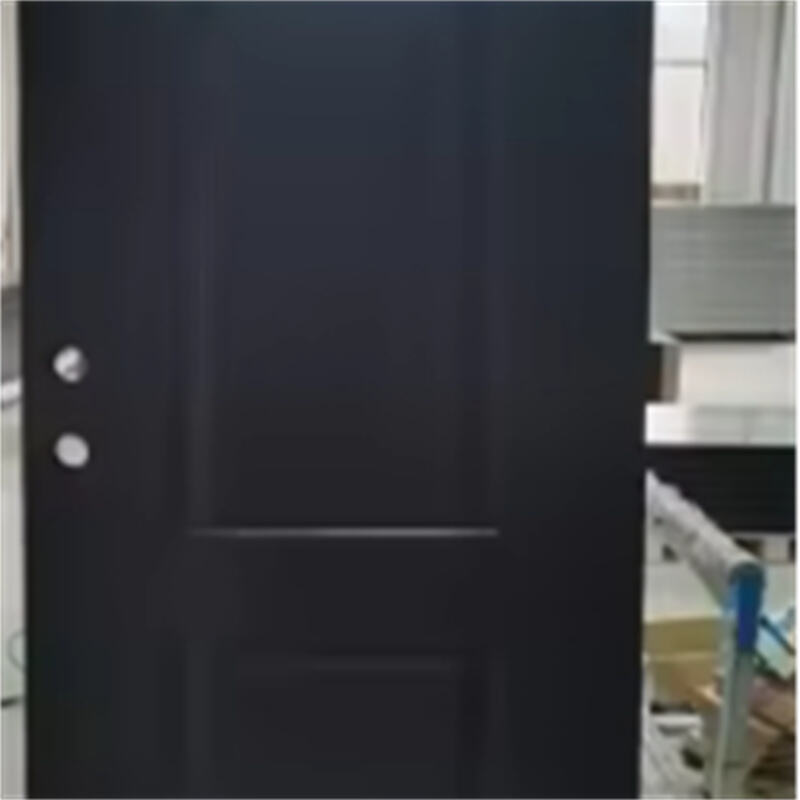

The thickness of the fireproof door frame material is 1.5mm, and door leaf material is 1.0mm. The thickness of the door panel is 45mm. The internal filling can be made of perlite or honeycomb.the door specification can be customized according to customer requirest

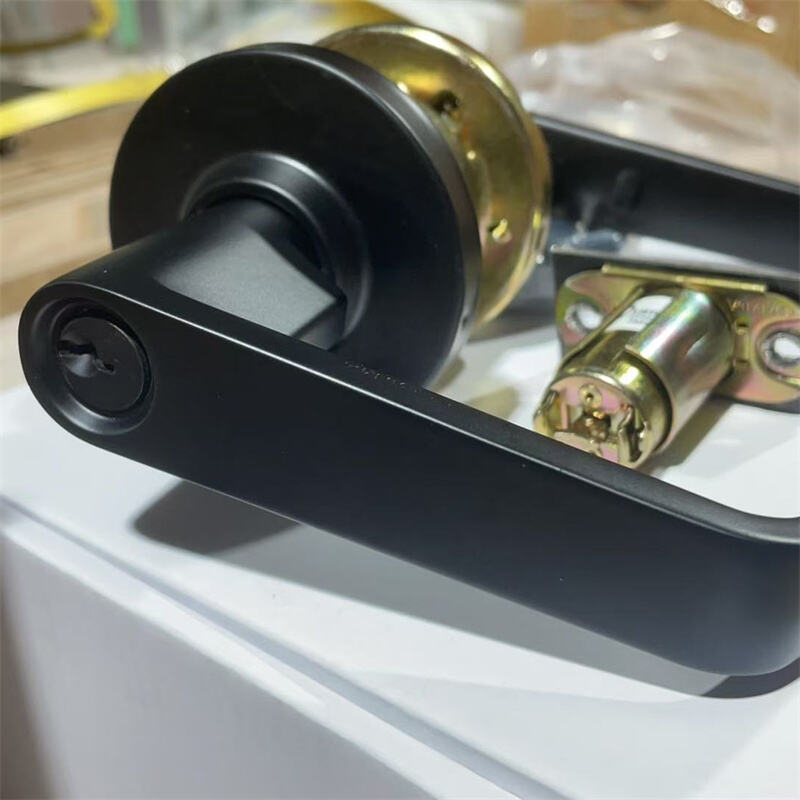

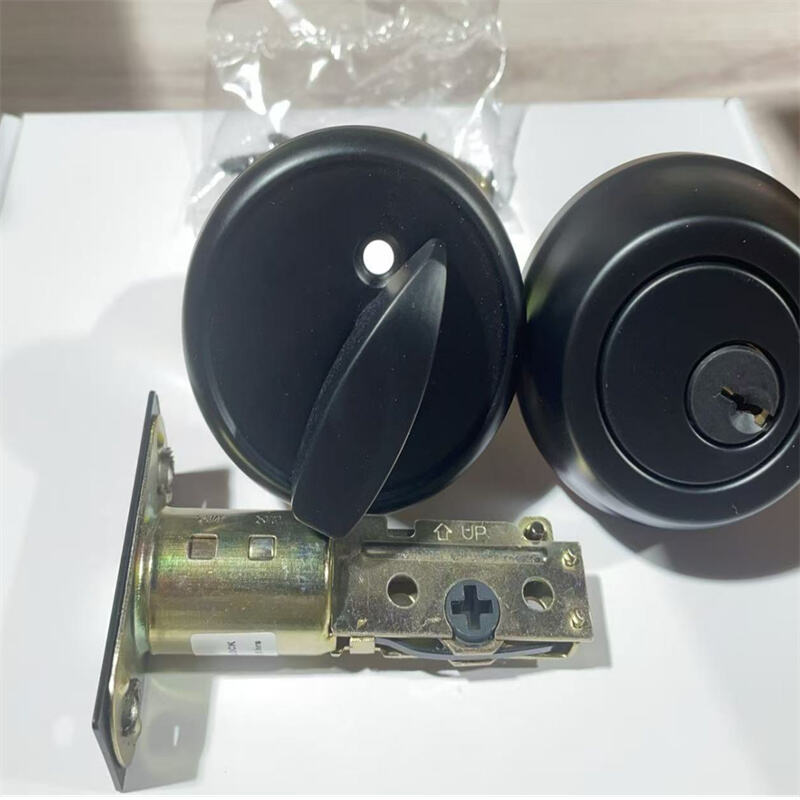

The locks and hinges equipped for American Standard fireproof doors (such as UL-certified doors) must comply with strict fire and safety standards to ensure the integrity and functionality of the door during a fire. The following are the key qualifications and requirements:

UL Certification (Underwriters Laboratories)

The locks must be certified to meet the UL 10C (fire door testing standard) and UL 294 (door hardware safety standard).

The electronic lock must also comply with UL 1034 (anti-theft standard) or UL 10B (fire resistance test).

ANSI/BHMA standard

The mechanical lock must comply with the ANSI/BHMA A156.xx series (for example, A156.13 is the standard for fireproof locks).

NFPA 80 (Standard of the American Fire Protection Association)

The lockset must meet the fire resistance time requirements (such as 20/45/60/90 minutes) and be compatible with the fireproof door grade.

Other requirements

Prohibit the use of automatic locking functions (such as "deadlock"), and ensure that emergency escape complies with NFPA 101 (Life Safety Code).

The escape device must comply with ANSI/BHMA A156.3 (the standard for escape hardware).
